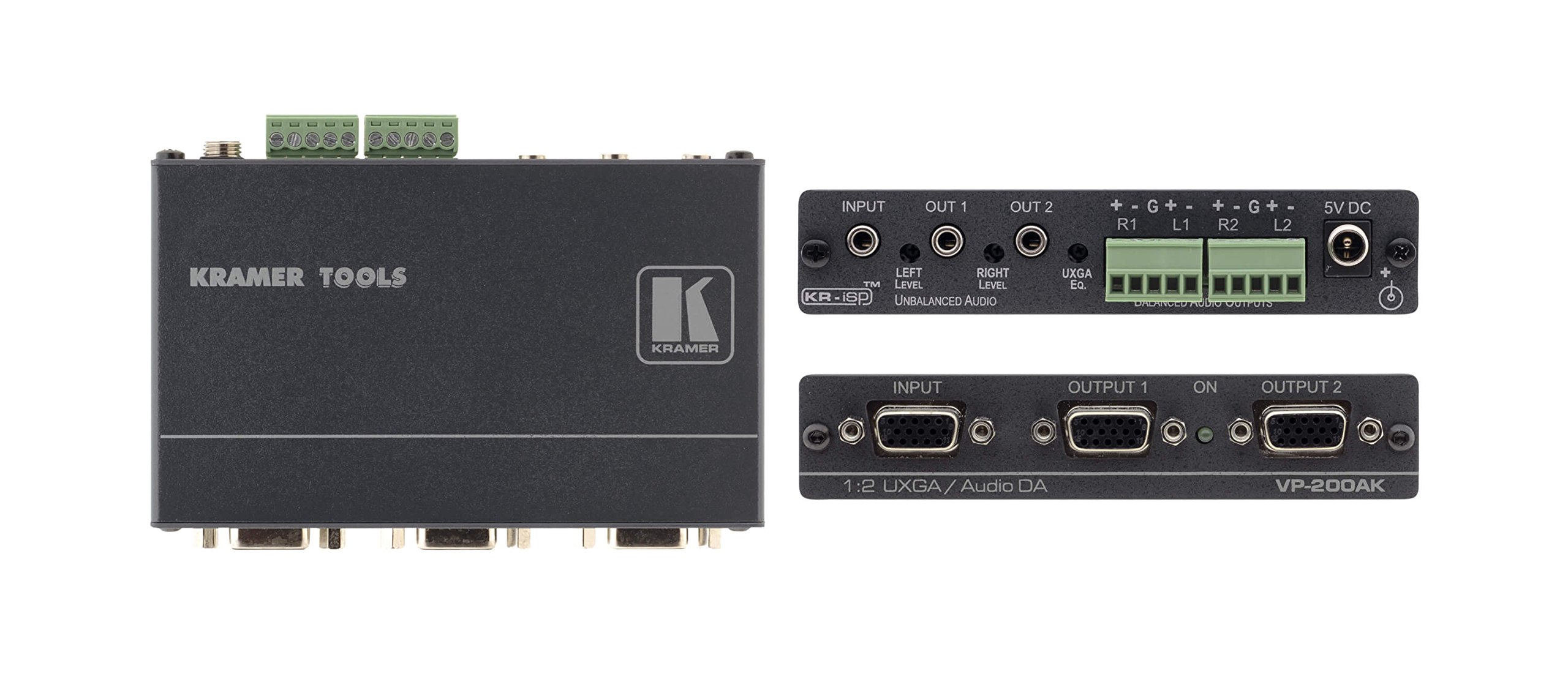

The VP-200AK is a high-performance distribution amplifier for computer graphics video signals, with resolutions up to and exceeding UXGA, and stereo audio signals. It takes a computer graphics video and an unbalanced stereo audio input and outputs simultaneously two computer graphics video, two balanced, and two unbalanced stereo audio signals. High Bandwidth - 510MHz (-3dB0 HDTV compatible Audio Output - Simultaneous balanced and unbalanced stereo EQ (peaking control) Audio Level (Gain) Controls Kr-isp Advanced Sync Processing - Ensures compatibility with a wide range of computers (even if the sync level is too low) by restoring the sync signal waveform. Kr-isp advanced sync processing can be enabled or disabled via internal switches. ID Bit Control Compact Kramer TOOLS - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter. Specifications: Inputs: 1 XGA on a 15-pin HD (F) connector; 1 unbalanced stereo audio on a 3.5mm mini jack. Outputs: 2 UXGA on 15-pin HD (F) connectors; 2 unbalanced stereo audio on 3.5mm mini jacks; 2 balanced stereo audio on detachable 5-pin terminal blocks. Max Output Level: Video: 2.0Vpp; Audio: 7.2Vpp. Bandwidth (-3dB): Video: 510MHz; Audio: >100kHz. Diff. Gain: 0.55% Diff. Phase: 0.10Deg. K-Factor: S/N Ratio: Video: 72.5dB @5MHz; Audio: 82dB (balanced); 88dB (unbalanced). Controls: EQ: 0dB to 4.7dB @50MHz. Coupling: Video: DC; Audio: AC at the output; DC at the input. Audio THD+ Noise: 0.005% @1kHz (unbalanced and balanced). Audio 2nd Harmonic: Dimensions: 4.7 x 2.8 x 0.95 inches
